ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel
HomeStore

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel—

The Story

- 1000 Watt-hours of electricity per day（5-6 hours of direct sunlight
- 10-year workmanship warranty, 25-year 80% output warranty.
- 9 bus-bars and PERC cell technology optimize overall efficiency.
- Half-cut cells and bypass diodes enhance accidental shading tolerance.
- Durable design ensures long-lasting use in challenging environments.
- Pre-drilled holes facilitate easy installation.
Reliable Power Output
High-Efficiency Advanced Solar Cells
Stable Solar Conversion
Reliable Electricity Output Performance
Renogy 200W Monocrystalline Solar Panel can provide about 1000 Watt-hours of electricity per day under 5-6 hours of direct sunlight, with a guaranteed positive output tolerance of 0%-3%.
Advanced Solar Cells for Enhanced Efficiency
Renogy's Grade A+ quality panel maximizes overall efficiency through improved conductivity of 9 busbars and enhanced light reflection of PERC technology.
Consistent Solar Conversion under Accidental Shading
Half-cut cells and bypass diodes help protect the panel from hotspot overheating, enabling it to operate even in the presence of accidental shading.

Premium Quality
Powerful Performance
Proven Reliability
Premium Quality
With superior construction, the panel is designed to withstand challenging environments, ensuring durable and long-lasting use.
Powerful Performance
Its exceptional capabilities in extreme weather ensures a remarkable performance for years to come.
Proven Reliability
Various tests guarantee a reliable and certified quality for dependable electricity output.

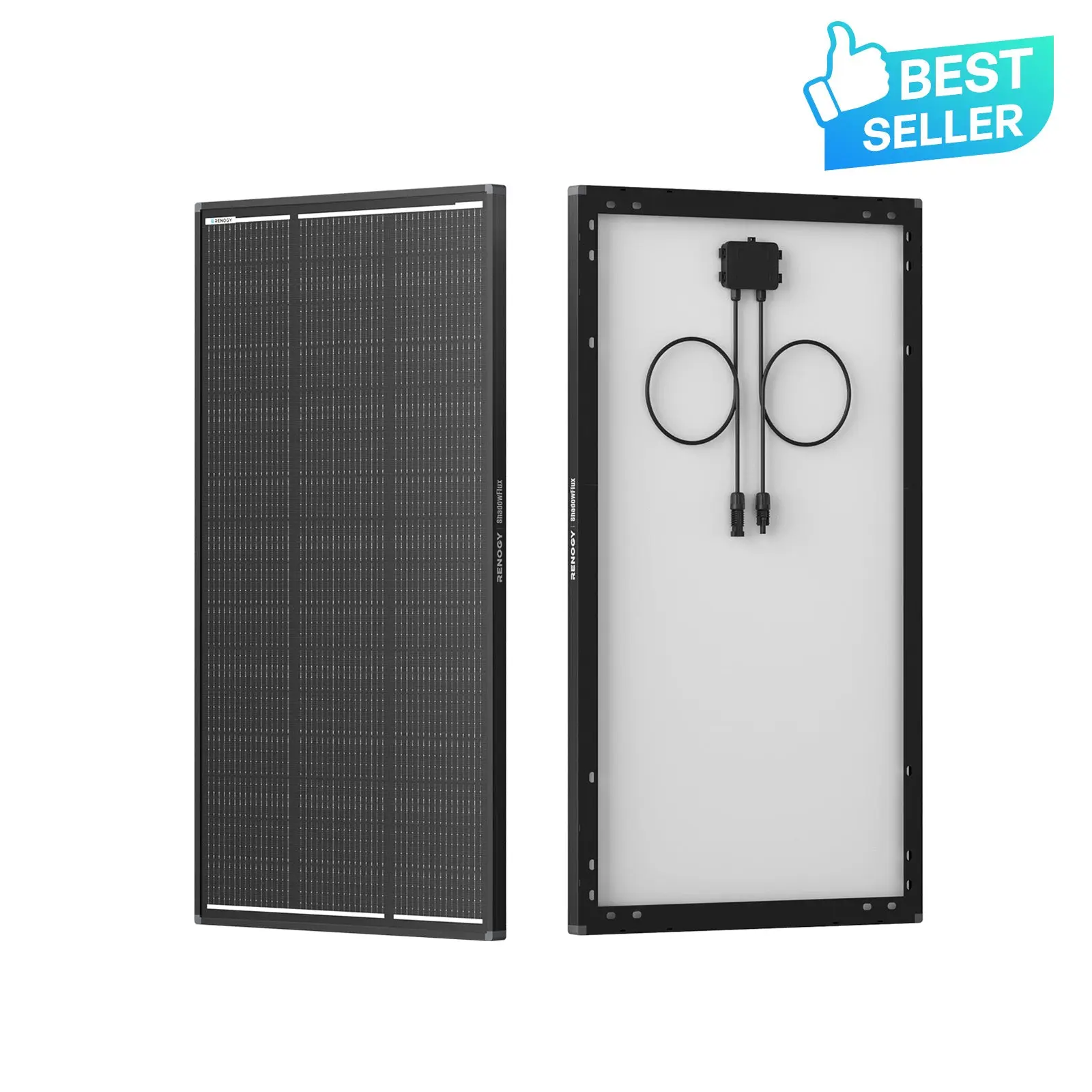

Pre-drilled holes for fast mounting and securing
It has pre-drilled holes on the back of the panel, which are also compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.
Sturdy and Reliable Packaging
Renogy panels are protected with extra thick corrugated cardboard and foam L brackets on all 4 corners.
Get an Answer within 24 Hours
We offer real-time professional sales and technical support in versatile ways to ensure your question is answered within one day.


Specifications
Max Power at STC: 200W Open Circuit Voltage: 23V
Short Circuit Current: 11.05A Optimum Operating Voltage: 19.2 V
Optimum Operating Current: 10.42 A Operating Temperature:  -40°F~194°F / -40℃~90℃
Maximum System Voltage: 600 VDC UL Maximum Series Fuse Rating: 20A
Output Cable: 13 AWG 2.6 ft (0.9m) long Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight: 26.46 lb (12 kg)
 Solar Cells: 68 Cells (4*17)
Junction Box: IP65 Connectors: Solar Connectors
Module Efficiency: 19.2% Frame:  Anodized Aluminium Alloy
Maximum Series Fuse Rating: 15A


Warranty Information

Panels

25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty
Accessories 1-year material warranty


Certification

200 Watt 12 Volt Monocrystalline Solar Panel

200 Watt 12 Volt Monocrystalline Solar Panel Datasheet
200 Watt 12 Volt Monocrystalline Solar Panel

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 9

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 10

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 11

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 12

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 13

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 14

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 15

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 16

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 17

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 18

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

ShadowFlux 120/200W N-Type High Efficiency Anti-Shading Solar Panel - Image 19

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

- 1000 Watt-hours of electricity per day（5-6 hours of direct sunlight
- 10-year workmanship warranty, 25-year 80% output warranty.
- 9 bus-bars and PERC cell technology optimize overall efficiency.
- Half-cut cells and bypass diodes enhance accidental shading tolerance.
- Durable design ensures long-lasting use in challenging environments.
- Pre-drilled holes facilitate easy installation.
Reliable Power Output
High-Efficiency Advanced Solar Cells
Stable Solar Conversion
Reliable Electricity Output Performance
Renogy 200W Monocrystalline Solar Panel can provide about 1000 Watt-hours of electricity per day under 5-6 hours of direct sunlight, with a guaranteed positive output tolerance of 0%-3%.
Advanced Solar Cells for Enhanced Efficiency
Renogy's Grade A+ quality panel maximizes overall efficiency through improved conductivity of 9 busbars and enhanced light reflection of PERC technology.
Consistent Solar Conversion under Accidental Shading
Half-cut cells and bypass diodes help protect the panel from hotspot overheating, enabling it to operate even in the presence of accidental shading.

Premium Quality
Powerful Performance
Proven Reliability
Premium Quality
With superior construction, the panel is designed to withstand challenging environments, ensuring durable and long-lasting use.
Powerful Performance
Its exceptional capabilities in extreme weather ensures a remarkable performance for years to come.
Proven Reliability
Various tests guarantee a reliable and certified quality for dependable electricity output.
Pre-drilled holes for fast mounting and securing
It has pre-drilled holes on the back of the panel, which are also compatible with different Renogy mounting systems such as Z-Brackets, Pole Mounts, and Tilt Mounts.
Sturdy and Reliable Packaging
Renogy panels are protected with extra thick corrugated cardboard and foam L brackets on all 4 corners.
Get an Answer within 24 Hours
We offer real-time professional sales and technical support in versatile ways to ensure your question is answered within one day.


Specifications
Max Power at STC: 200W Open Circuit Voltage: 23V
Short Circuit Current: 11.05A Optimum Operating Voltage: 19.2 V
Optimum Operating Current: 10.42 A Operating Temperature:  -40°F~194°F / -40℃~90℃
Maximum System Voltage: 600 VDC UL Maximum Series Fuse Rating: 20A
Output Cable: 13 AWG 2.6 ft (0.9m) long Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
Weight: 26.46 lb (12 kg)
 Solar Cells: 68 Cells (4*17)
Junction Box: IP65 Connectors: Solar Connectors
Module Efficiency: 19.2% Frame:  Anodized Aluminium Alloy
Maximum Series Fuse Rating: 15A


Warranty Information

Panels

25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate

5-year material and workmanship warranty
Accessories 1-year material warranty


Certification

200 Watt 12 Volt Monocrystalline Solar Panel

200 Watt 12 Volt Monocrystalline Solar Panel Datasheet
200 Watt 12 Volt Monocrystalline Solar Panel
