Original: $186.99
-70%$186.99
$56.10The Story
Package Includes
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
|

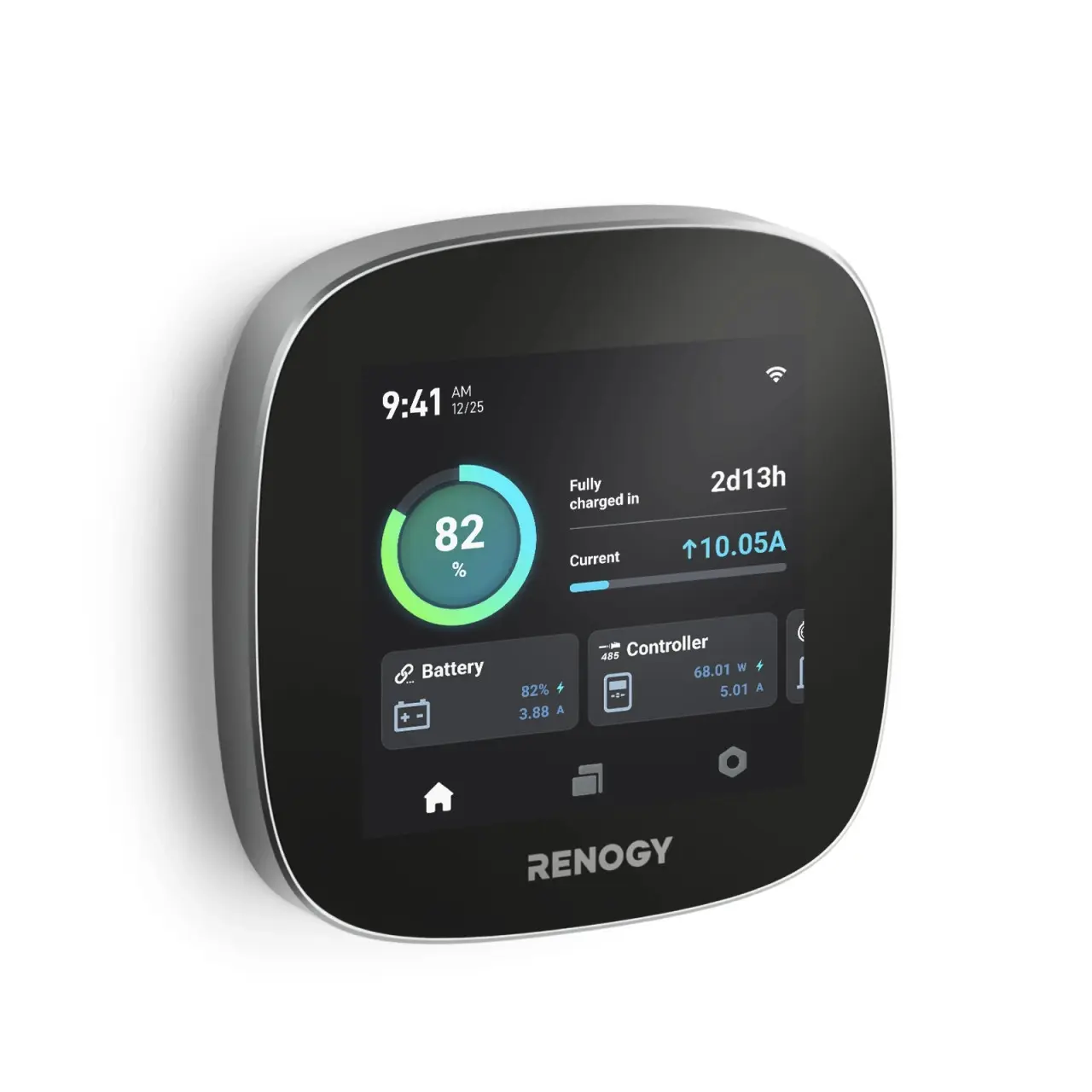

Renogy ONE Core
1 x
|
Quick Guide
1x
|
|
Power Cable
5m
|
Mounting Screw
M3.5 x14mm x4 (1 extra)
|
|
ELECTRICAL DATA |
|
|---|---|
| Operating Voltage | 8-35 VDC (5 VDC for USB Type-C) |
| Power Consumption at 12V | Operating, WiFi On, 100% illumination: 3.2 W Operating, WiFi On, 50% illumination: 2.4 W Operating, WiFi On, 0% illumination: 1.9 W Off, logger still active: 1.5 W |
| Communication | IEEE 802.11 a/b/g/n 2.4GHz & 5GHz Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) RS-485&CAN |
| Touch Screen | 4 inches (480 x 480p) |
| GENERAL DATA | |
| Model | RSHGWSN-W02W-G3 |
| Operating Temperature | -4℉ to 158℉ (-20℃ to 70℃) |
| Operating Humidity | 0% to 95% RH |
| Operating Altitude | Less than 5000m above sea level |
| Installation | Flush mount |

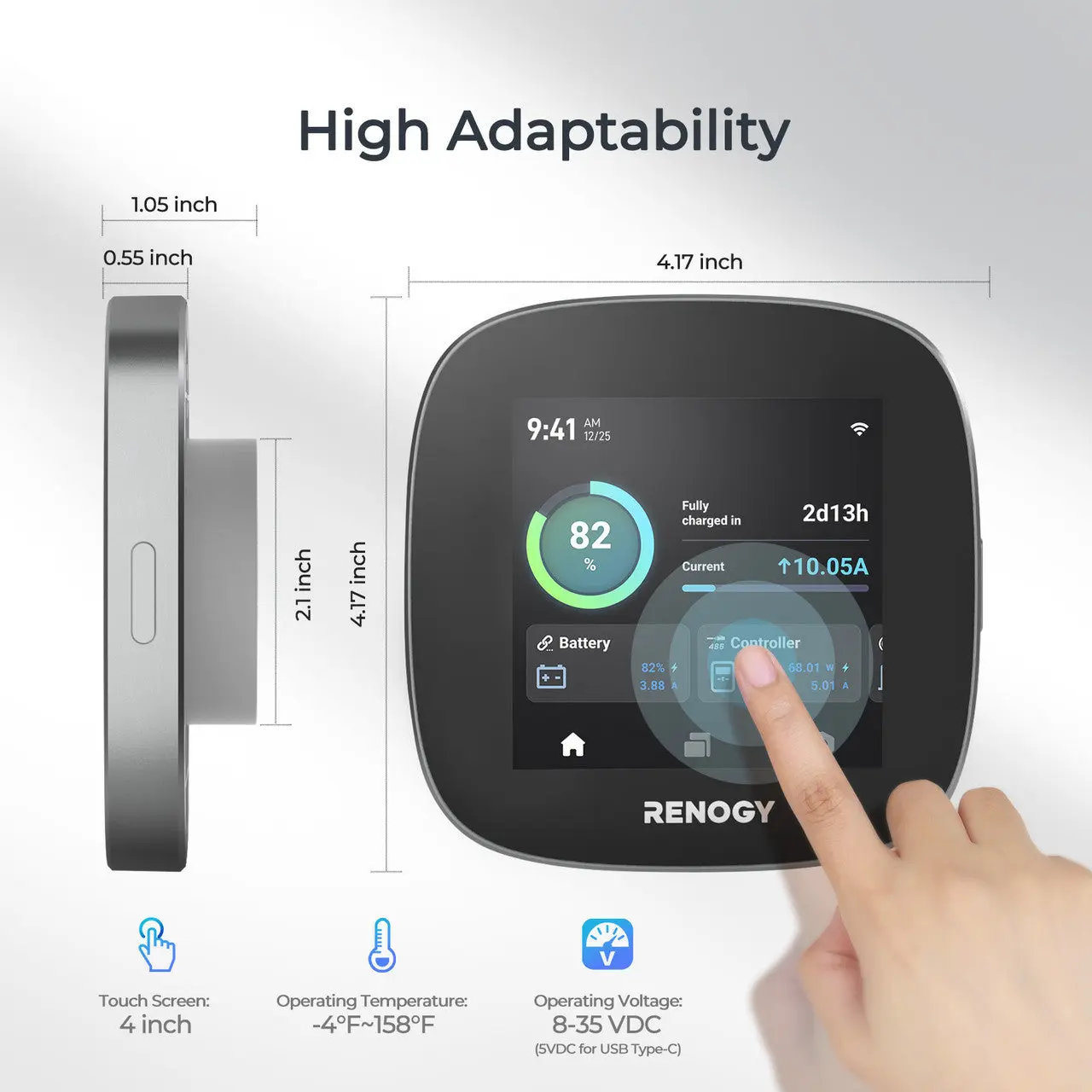

| Dimensions | 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm) |
| Weight | 0.28 lb (128g) |
| Certification | CE, FCC, RoHS, TSCA, BQB, IC-ID |
| Material and workmanship warranty | 2 years |

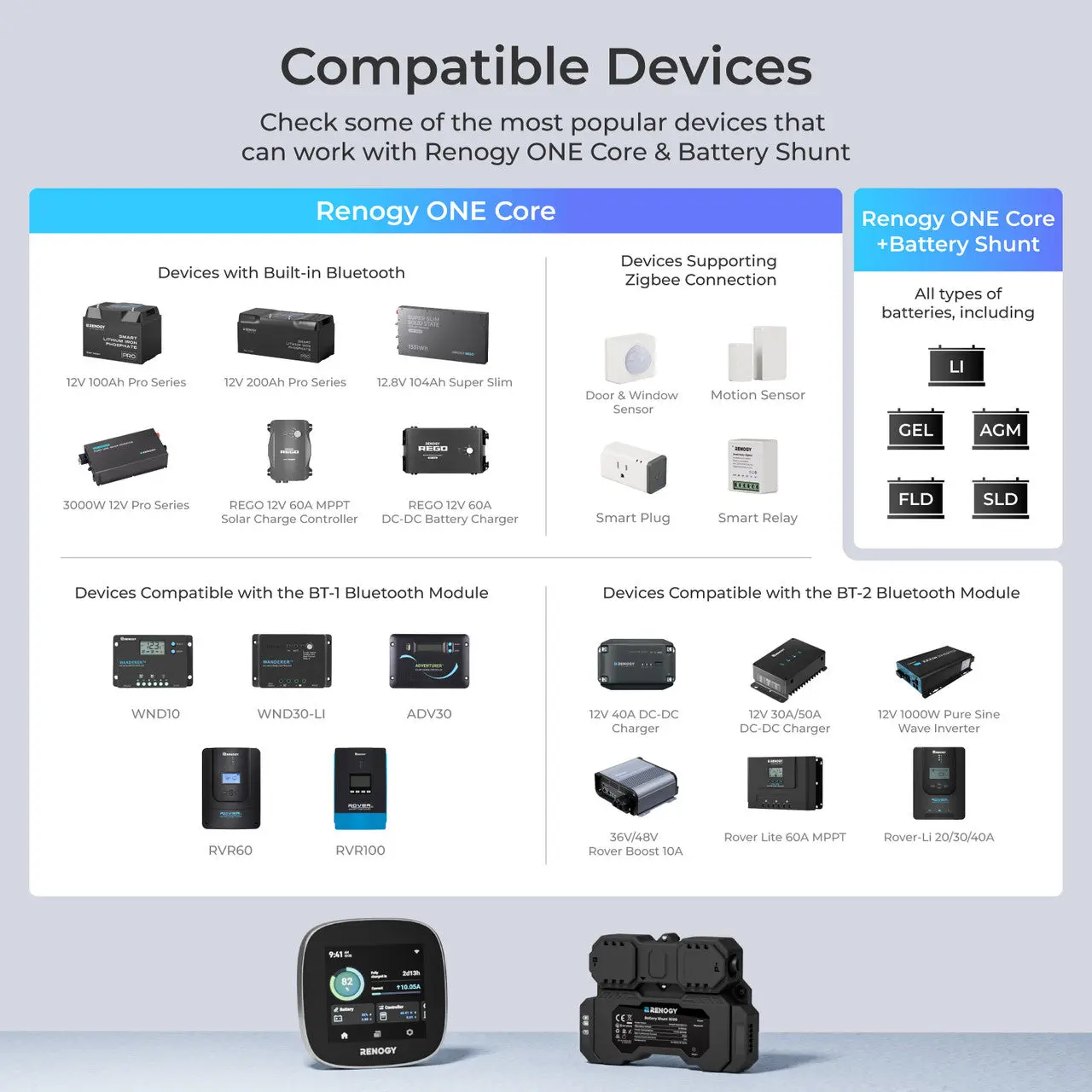

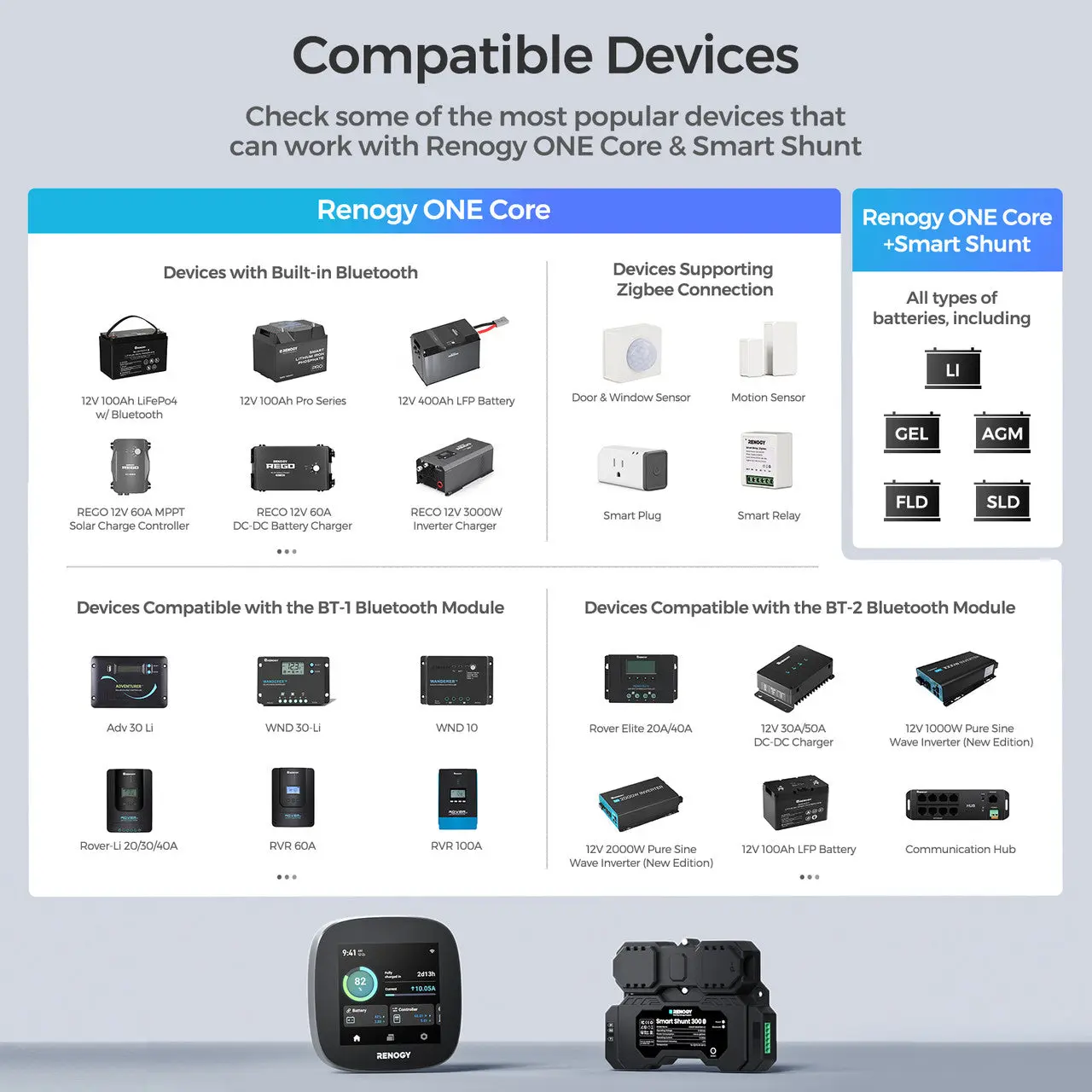

The Renogy ONE Core can function as a power monitor when it is connected to Renogy batteries that support Bluetooth (built-in or with external BT-1/BT-2 modules) and RS-485.
Yes, the Renogy ONE Core G3 supports RV-C communication.
No, it does not come with a shunt, but it is compatible with the Shunt 300 if needed.
Yes. It supports 2.4 GHz Wi-Fi and 5 GHz Wi-Fi.
No. It does not support WPA3.

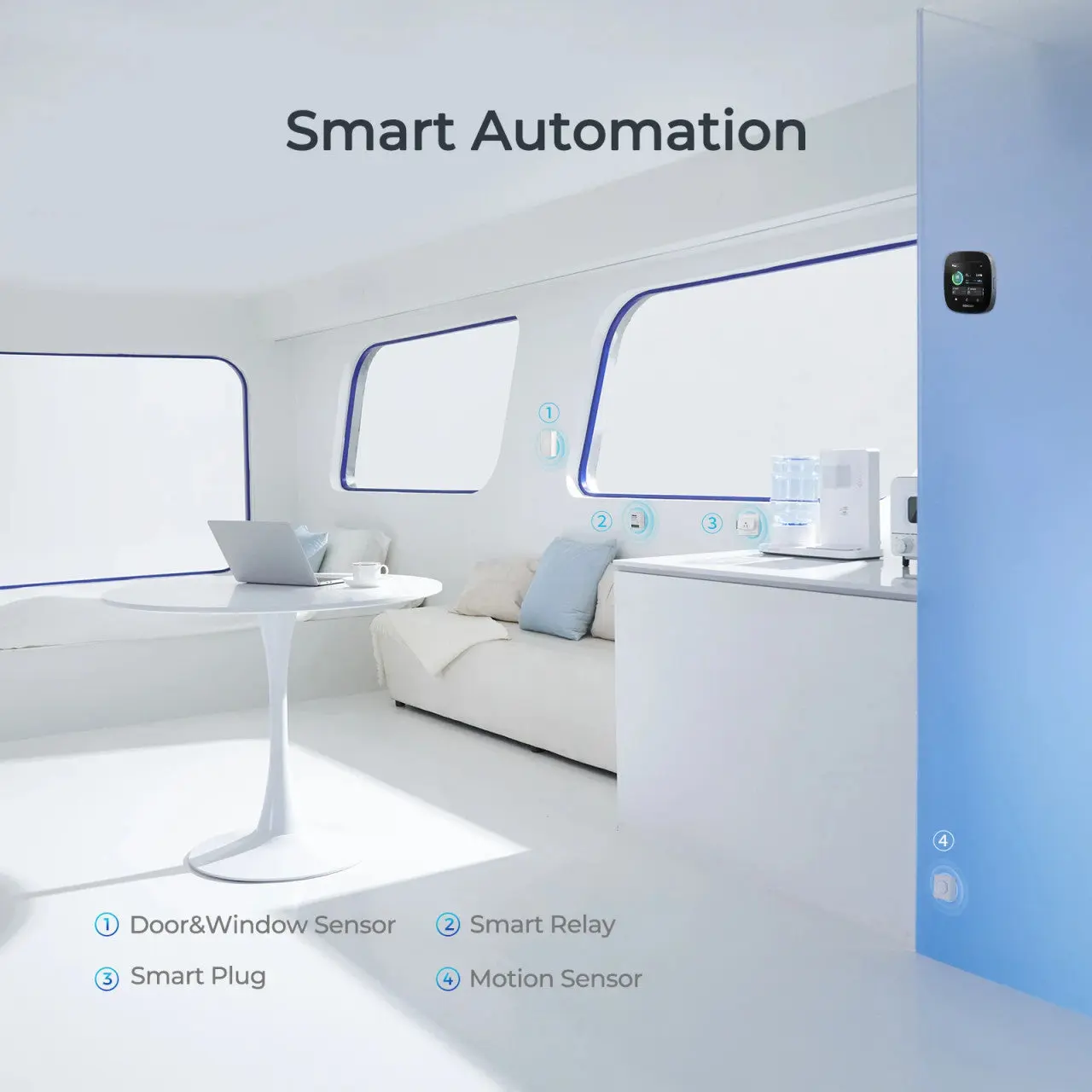

We cannot guarantee the compatibility between Renogy ONE Core and third-party Zigbee 3.0 smart home devices. Therefore, it is recommended to use smart accessories that have been authorized by Renogy with your Renogy ONE Core, such as Smart Plug, Motion Sensor, Door & Window Sensor, and Smart Relay.
Yes, the configured smart scenes in Renogy ONE Core will still work when it is offline. Renogy ONE Core utilizes the Zigbee 3.0 protocol to establish wireless connections with smart accessories. When you set up a smart scene for home automation, the configuration is saved within the system of Renogy ONE Core. This means that even if the Wi-Fi network is unavailable, Renogy ONE Core can still communicate with and control smart accessories through Zigbee 3.0.
Renogy ONE Core can be supplied by a 5V DC source via Type-C or an 8V to 35V DC source via the power cable. As for energy monitoring, Renogy ONE Core allows you to monitor power devices rated at 12V DC or 24V DC.

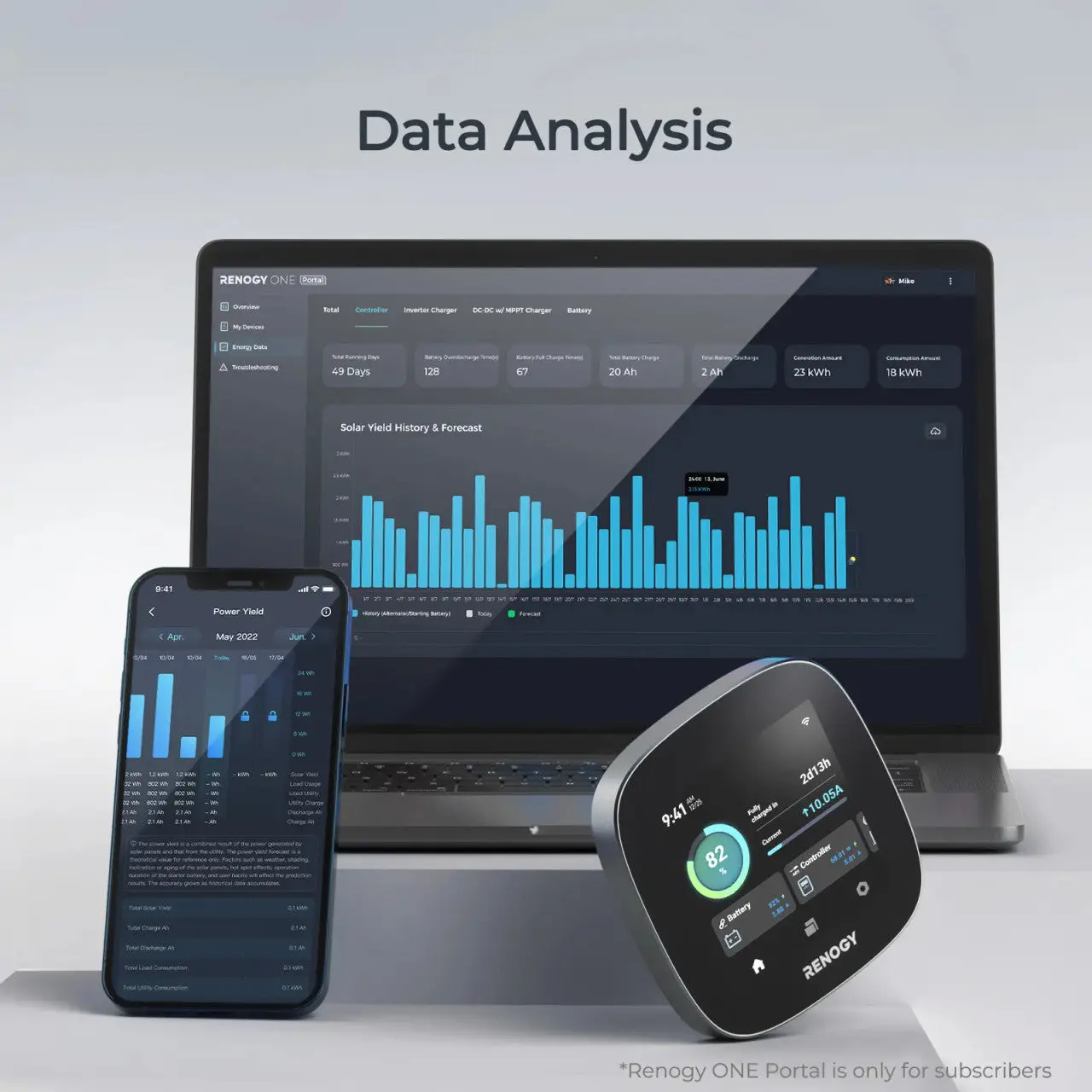

Renogy ONE Core can store data locally for 30 days
More questions about your off-grid power system? Learn more from Renogy Learning Center!
 |
 |
 |
 |
