Clearance: 400W Solar Panel Kit—
The Story
- 2kWh average daily output. 22.5% cell efficiency.
- 10-year material and workmanship warranty on solar panels.

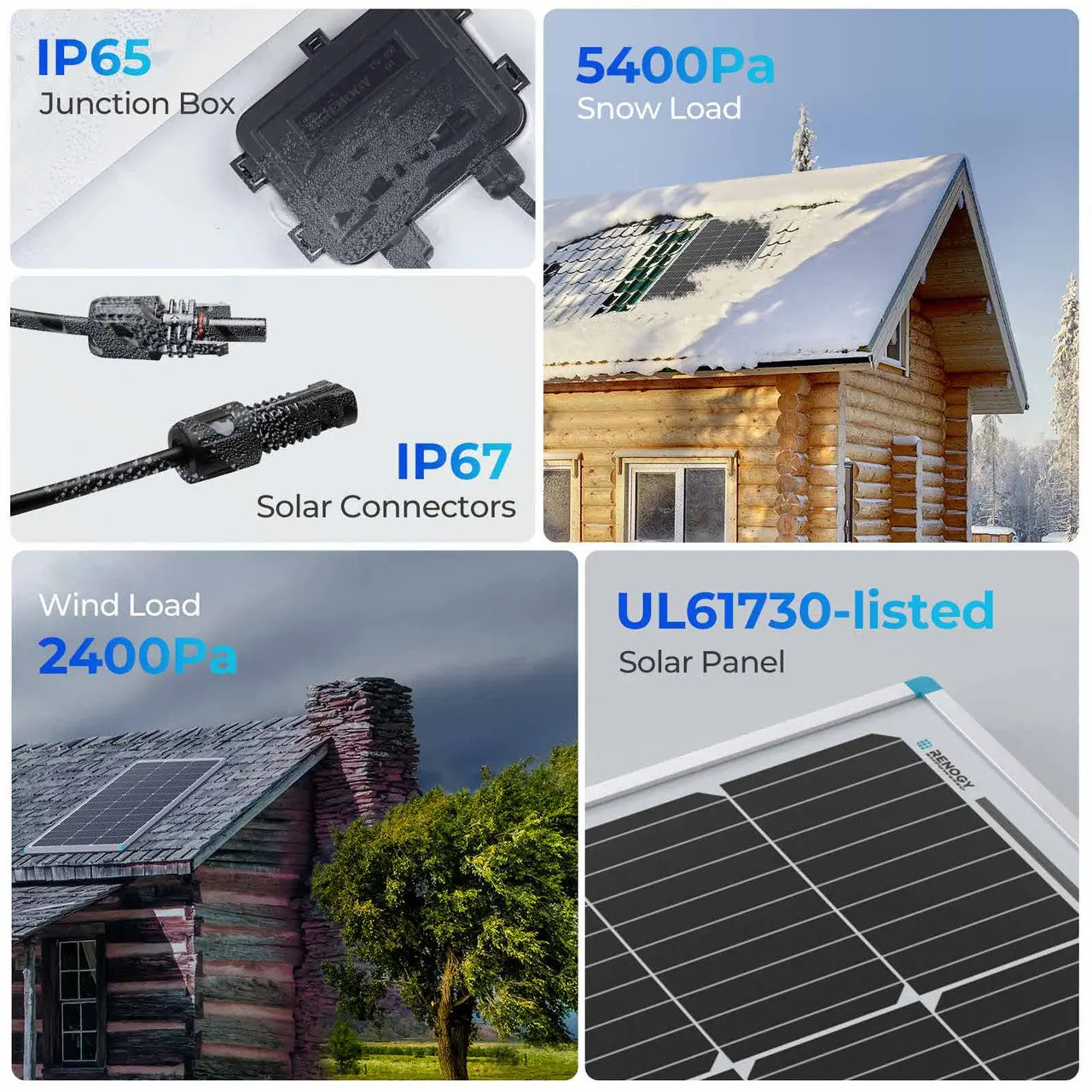

- UL61730-listed panels. 2400Pa wind, 5400Pa snow.
- 30A PWM charge controller with a RS232 bluetooth port.
- Charge controller certified by CE, FCC, and RoHS

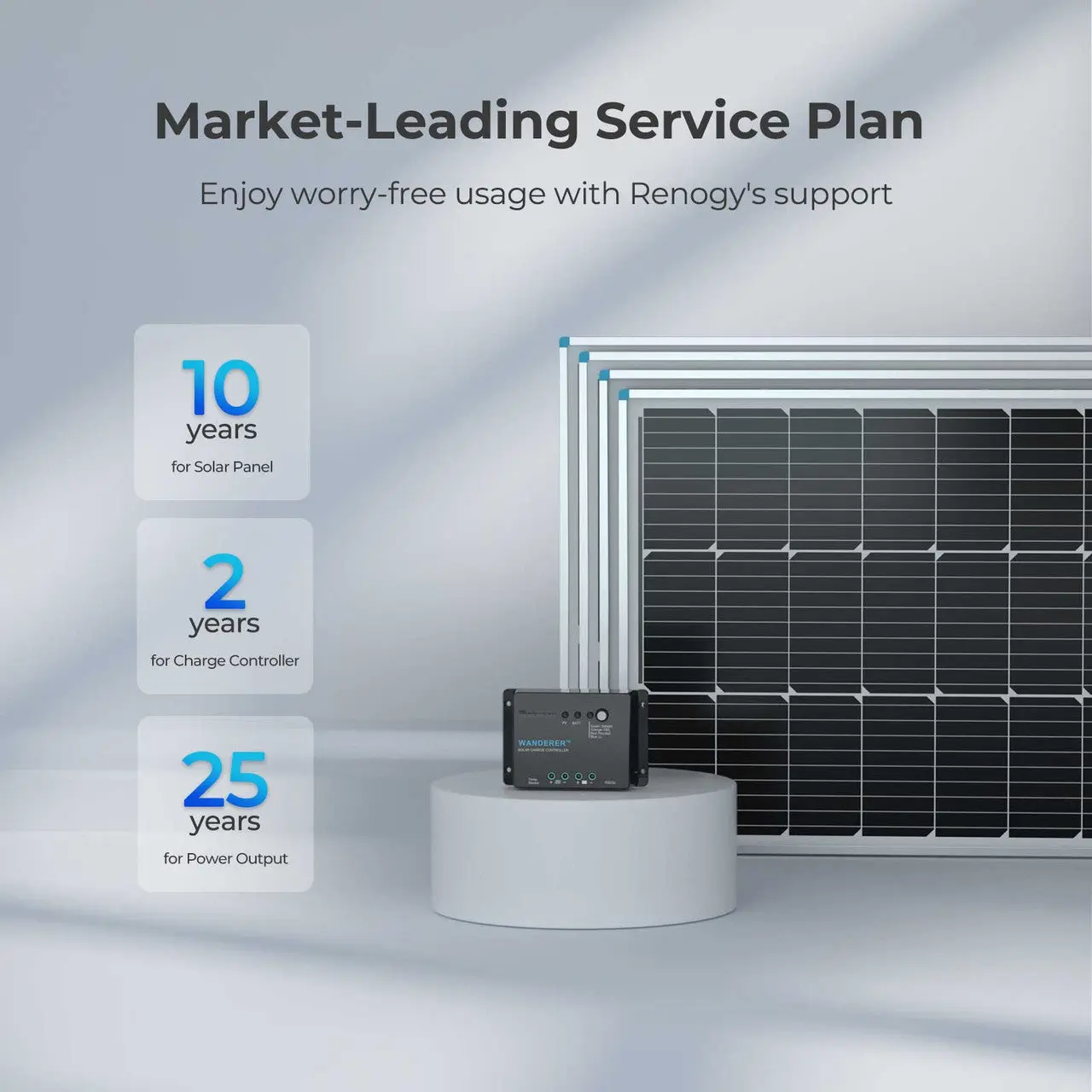

Industry-leading Warranty, Effortless Solar Setup
Renogy Solar Starter Kits feature a 10-year material and workmanship warranty on solar panels and a 2-year warranty on PWM charge controllers. They include all necessary equipment for building a basic system that is beginner-friendly.
Quality Assured with EL Testing
Renogy's solar panels undergo 100% EL testing, ensuring nearly 0% chance of receiving a defective panel.
Durable and User-Friendly Design
The frame of the solar panel is crafted from a 1.1~1.2mm aluminum alloy, which is 0.4mm thicker than that of competitors. It features 20 pre-drilled mounting holes on the back frame for quick and secure installation.
Easy and Quick Installation
The terminals of the charge controller are compatible with solar cables up to 8 AWG. Connecting the cable to the controller is easy and quick, thanks to appropriate spacing and pre-stripped cables.
Temperature Adjustment in Real Time
You can use the temperature sensor to adjust the charging voltage based on battery temperature.
This maximizes performance and extends the lifespan of lead-acid batteries.
Voltage Tracking in Real Time
You can add a BT-1 Bluetooth Module* to receive timely warnings through your DC Home app.
4-Stage Charging
The 30A Wanderer PWM Charge Controller features advanced 4-stage charging (bulk, boost, float, and equalization) to efficiently and safely charge your battery to 100%.
12V Solar System
4-Step Setup
Learn more
Package Includes
- 4 x 100W Mono Solar Panel
- 1 x Wanderer Li 30A PWM Charge Controller
- 3 x Solar Y Branch Connectors
- 1 x 20FT 10AWG Adaptor Kit
- 1 x Renogy 8ft 10AWG Tray Cables
- 4 x Mounting Z Brackets (Set)
| RENOGY 200w EFLEX portable solar panel | |||
|---|---|---|---|
| Max Power at STC | 200 W | Open Circuit Voltage | 23.40V |
| Short Circuit Current | 10.50A | Optimum Operating Voltage | 20.16V |
| Optimum Operating Current | 9.92A | Cell Efficiency | >22.6% |
| Operating Temperature | ’14°F to 149°F(-10℃ to +65℃) | Dimensions | 25.0 x 21.1 x 2.2 in / 635 x 536 x 55 mm(fold),94.1 x 21.1 x 0.2 in / 2390 x536 x 4 mm (unfold) |
| Weight | 17.6 lbs. / 8.0 kg | ||
| Warranty | Material and workmanship warranty | 1 | |
| Certifications | CE and RoHS compliant, FCC, Manufactured in a Certified ISO 9001 Facility, CA65, PES | YES | |
1.What do I need to complete my off-grid solar power system?
A solar panel has to be connected a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2.What does off-grid and on-grid mean?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3.Why is my solar panel under producing?
Solar panel performance may be hindered for a number of reasons. Most commonly environmental conditions such as indirect sunlight, temperature rise, cloudy sky, and dirt and stain build up on the top glass will cause a reduced power output.
4.How should I connect solar panels in my electrical circuit (series vs parallel) ？
Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. Connecting solar panels in series will have the effect of adding up their operating voltage output, while system current output will be the same as that for one panel. While, connecting solar panels in parallel will have a different effect; individual panels operating current output will add up to be the system output current, while system output voltage will be the same as the output voltage of one solar panel. To meet the optimum power output and system rating for your power system, you can use both parallel and series connections.
5.How many solar panels do I need?
The best way to gauge how many solar panels you need, is to understand and define the power load needed from this system. Power is measured in Watts, and capacity is commonly measured in Watt-hours (multiplying power output in watts by the required number of hours of operation multiplied by a safety factor of 1.5-2). Therefore, it is wise to size your battery bank first based on the minimum required capacity, and accordingly decide how many panels or how much power input is needed.
What does the 12V/24V in the product title of the solar panel mean? Why is it different from the value on the label/specification sheet of the solar panel?
The 12V/24V in product titles (ex. 150W 12V CIGS Solar panel) does not refer to the actual voltage (Voc or Vmp) of the solar panels, but rather to the voltage of the solar system or energy storage system to which the panel is best suited. The voltage of the solar panel must be higher than the solar system voltage.
 |
