400W 12V Starter Solar Panel Kit—
The Story
The Kits come with 4pcs of 100W or 2pcs of 200W classic rigid (or ultra flexible) solar panels, 1pcs of 40A MPPT charge controller from the classic Rover series or the 1pcs of 30A PWM charge controller, no battery or 2pcs of 100Ah smart lithium battery with self heating feature (or the economical lithium battery with built-in Bluetooth), no inverter or 1pcs of 2000W pure sine wave inverter (or inverter charger), and all necessary accessories including cables, connectors, mounts and monitoring to connect the main components you have chosen.
*Based on an average of peak sun hours around 5-6.
4*100W 12V Rigid Solar Panel Parallel

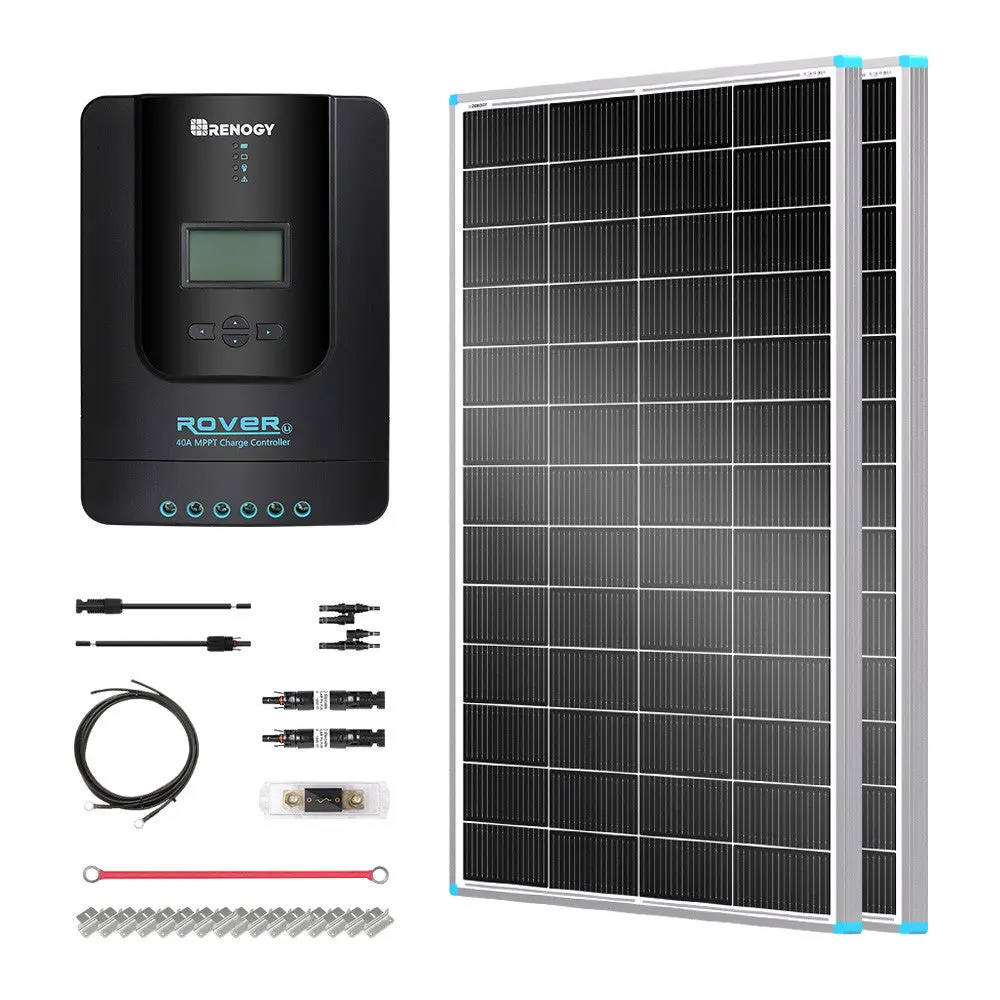

2*200W 12V Solar Panel
NOTE
- If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
RV
MARINE
CAMPING
OUTDOOR
CABIN
TRUCK
Package Includes
| Solar Panel | Quantity*Title |
|---|---|
| 4*100W N-Type Rigid Solar Panel | |
| 2*200 Watt 16BB N-Type 24V Solar Panel | |

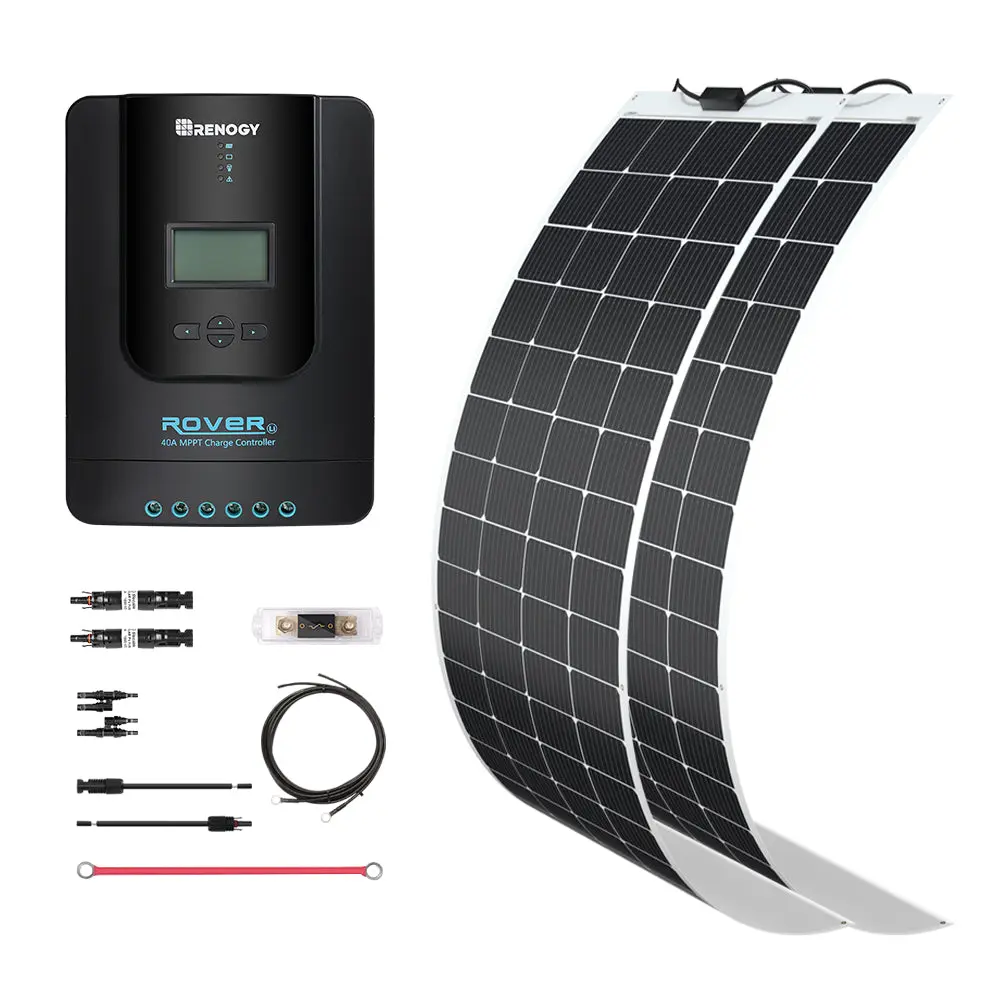

| 2*200W 12V Flexible Solar Panel | |
| Charge Controller
|
Quantity*Title |
| 1*Rover 40A MPPT W/ LCD & BT2 Module | |
| Battery
|
Quantity*Title |
| 2*12V 100Ah Pro Lithium Battery w/Bluetooth & Self-heating | |
| 2*12V 100Ah Core Mini Lithium Battery w/ Self-heating Function | |
| 2*Battery Inverter Cables | |
| Inverter | Quantity*Title |
| 1*2000W 12V Pure Sine Wave Inverter | |
| 1*2000W 12V Pure Sine Wave Inverter Charger & 1*Battery Inverter Cables for 3/8 in Lugs | |
| 1*300A ANL Fuse Set w/ Fuse | |
|
1*Fuse Cable |
|
| Accessory Set/Premium | Quantity*Title |
| 4*Solar Panel Mounting Z Bracket -- Set of 4 | |
| 1*Solar Y Branch Connectors MMF+FFM Pair | |
| 1*Solar Panel to Charge Controller Adaptor Kit | |
|
1*Battery to Charge Controller Tray Cables |
|
| 1*BT-1 Bluetooth Module (New Version) | |
| 2*Holder w/ Fuse | |
| 1*60A ANL Fuse Set w/ Fuse | |
| 1*Terminals for 3/8 in Lugs |
|
100W N-Type Rigid Solar Panel |
|
|---|---|
|
Max Power at STC: 100W |
Open Circuit Voltage: 22.79V |
|
Short Circuit Current: 5.31A |
Optimum Operating Voltage: 19.97V |
|
Optimum Operating Current: 5.01A |
Operating Temperature: -40°F~194°F / -40℃~90℃ |
|
Maximum System Voltage: 600V DC (UL) |
Module Efficiency: 20% |
|
Dimensions: 865x578x30mm/34.1x22.8x1.2in |
Weight: 5.9kg/13.0lbs |
|
200 Watt 16BB N-Type 24V Solar Panel |
|
|
Max Power at STC: 200W |
Open Circuit Voltage: 37.44V |
|
Short Circuit Current: 6.85A |
Optimum Operating Voltage: 31.03V |
|
Optimum Operating Current: 6.45A |
Operating Temperature: -40°F~185°F / -40℃~85℃ |
|
Maximum System Voltage: 600 VDC UL |
Maximum Series Fuse Rating: 15A |
|
Dimensions: 1262x764x30mm/49.7x30.1x1.2in |
Weight: 10.6kg/23.4lbs |
|
200W 12V Flexible Solar Panel |
|
|
Maximum Power at STC: 200W |
Open-Circuit Voltage (Voc): 23.9V |
|
Short Circuit Current: 10.74A |
Optimum Operating Current (Imp): 10.02A |
|
Maximum System Voltage: 600V DC |
Maximum Series Fuse Rating: 15A |
|
Operating Temperature: -40°F to 176°F (-40ºC to +80ºC) |
Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in) |
|
Weight: 4.9 kg / 10.8 lbs |
|
|
Rover 40A MPPT W/ LCD & BT1 Module |
|
|---|---|
| Nominal Voltage: 12/24V Auto-Detect | Rated Charge Current: 40A |
| Max. PV Input Power: 12V/520W, 24V/1040W | Max. PV Input Voltage: 95 VDC |
| Operating Temperature: -4°F to 185°F ('-20℃~85℃) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Weight: 4.58oz (130g ) | |
| Wanderer Li 30A PWM W/ LCD & BT1 Module | |
| Nominal System Voltage: 12 VDC | Rated Charge Current: 30A |
| Max. PV Input Power: 25 VDC | High Voltage Disconnect: 16V |
| Operating Temperature Range: -31°F - 176°F | Dimensions: 6.45 x 4.31 x 1.76 inches |
| Weight: 0.65 lbs | |
| Adventurer Li- 30A PWM W/ LCD & BT1 Module | |
|
Nominal Voltage: 12 VDC/ 24 VDC |
Rated Charge Current: 30A |
|
Max. PV Input Voltage: 50 VDC |
Max. PV Input Power: 12V(400W) / 24V(800W) |
| Storage Temperature: -31°F to 176°F | Dimensions: 6.56 x 4.50 x 1.90 inches |
| Weight: 0.6 lbs | |
|
12V 100AH PRO LITHIUM BATTERY W/BLUETOOTH & SELF-HEATING |
|
|---|---|
| Battery Type: Lithium Iron Phosphate | Rated Capacity: 100 Ah |
| Voltage: 12 V | Voltage Range: 10V to 14.8V |
| Cycle Life(0.5C,25℃): 5000 Cycles (80% DOD, 80% EOL) | Connection Method: Parallel(Up to 8) |
| Protection Rate: IP67 | Charge Voltage: 14.4V |
| Maximum Charge Current: 100Ah | Maximum Discharge Current: 100Ah |
|
Peak Discharge Current: 245A@30s |
Charge Temperature Range: -4°F to 131°F (-20°C to 55°C) |
|
Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C) |
Storage Temperature Range: -13°F to 149°F (-25°C to 65°C) |
| Operation Relative Humidity: 10% to 95% | Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm) |
| Weight: 26.9 lbs. (12.2 kg) | |
| 12V 100Ah Core Mini Lithium Battery w/ Self-heating Function | |
| Battery Type: Lithium Iron Phosphate | Rated Capacity (0.5C, 25°C): 100AH |
| Voltage: 12 V | Cycle Life (0.5C, 77°F/25°C): 5000 Cycles (80% DOD) |
| Charge Voltage: 14.6V | Protection Rate: IP65 (Dust-tight & splash-resistant) |
| Maximum Charge Current: 100A | Maximum Discharge Current: 100A |
| Maximum Continuous Discharging Current: 100 A | Charge Temperature Range: -22°F to 131°F (-30°C to 55°C) – Ideal for safe charging |
| Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C) | Connection Method: Series (Up to 4): Series & Parallel (up to 4S4P) |
| Terminal Bolt Size: M8 x 1.25 × 12 mm | Dimensions: 9.02 × 5.43 × 8.39 in (229 × 138 × 213 mm) |
| Weight: 21.38 lbs (9.7 kg) | |
| 2000W 12V Pure Sine Wave Inverter | |
|
Continuous Output Power: 2000W |
Peak Power Rating: 4000W |
|
Output Voltage: 1150V |
Output Frequency: 60 Hz ± 0.1% |
| AC Output Sockets: 3 | AC Terminal Block: 1 |
| USB Power Port: 5V/2.1A | Power Output Control: AC On/Off Switch, and Remote Control |
| Output Waveform: Pure Sine Wave | Nominal Efficiency: > 90% |
| Operating Temperature Range: -4°F - 104°F | Cooling Fan: Thermally controlled |
| Dimensions: 17.8 x 8.6 x 4 in | Weight: 11.7 lbs |
| 2000W 12V Pure Sine Wave Inverter Charger | |
|---|---|
|
Continuous Power: 2000W |
AC Output Voltage Range: 100~120VAC configurable, 5V interval |
|
DC Input Voltage Range: 10~16 VDC |
Nominal Efficiency: > 90% Peak |
| Output Waveform: Pure Sine Wave | Output Frequency : 50/60 Hz |
| Input Voltage Range: 90-138 VAC | Input Wave Form: Sine Wave (Utility or Generator) |
| Operating Temperature: 0 ~ 40°C / 32 ~ 104°F | Storage Temperature: -30 ~ 70°C / -22 ~ 158°F |
| Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER | Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm |
| Weight: 51.1 lbs / 23.2 Kg | |
| WARRANTY INFORMATION | |
|---|---|
|
Panels: 10-year output warranty & material and workmanship warranty |
Accessories: 1-year material and workmanship warranty |
1. What do I need to complete my off-grid solar power system ?
A solar panel has to be connected to a charge controller to regulate current, and a battery to store the electrical power. You will need adapter kit cables to wire the solar panel(s) and charge controller, and tray cables connecting the charge controller to a deep-cycle battery.
2. What does off-grid and on-grid mean ?
On-grid simply means solar power equipment (array or solar panel) is connected to the electrical grid, while off-grid refers to systems that are not connected to the grid and therefore store the generated power for later use. Off-grid systems are not affected by grid blackouts.
3. Can I add more solar panels to the Rover 60A and expand my system power output?
Yes, more solar panels can be added to this system to increase the power output. The Rover 60A has a maximum PV input current of 60A, maximum PV input voltage of 100VDC, and maximum input solar power of 520W at 12V or 1040W at 24V. You can wire more solar panels in series / in parallel to achieve larger power output, however you are limited by the maximum input voltage and current the charge controller can handle. It is safer to build a system operating at around 90% of the rated voltage and current to ensure there is a tolerance for any system overvoltage or overcurrent.
4. Will this solar kit power my AC unit ?
In order to determine what size solar kit is appropriate, you must first define the total load to be expected of the solar power system. Most manufacturers will publish a specification sheet of the AC unit online and will include a nameplate sticker on the AC body. Both can be used to determine the actual power rating of the AC. BTU is a common measuring unit for energy in AC and water heater products, however we are intrested in the energy rate, or simply power. Power will be listed in units of Watts, and can be used to determine the total load resulting from running the intended AC unit. Multiply the power rating recorded in watts by the total number of hours of operation intended, to obtain the total watt-hours. Divide the total watt-hours by the peak sun hours in the location of installation, and multiply by a safety factor of 1.5-2, to obtain the total number of watts your panels should produce to power the air conditioner load. The total power load can be divided by the power output of one panel to obtain the number of panels needed.
5. When do I need an inverter ?
If you intend to use this solar power kit as a power supply for home appliances (e.g. coffee maker, TV, etc.), then you will need an inverter to convert the output voltage from a 12 VDC system to a 120V AC output socket. Renogy offers a variety of inverter products to suit your unique system and meet your power demand.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
 |
